Well i wouldn’t use ABS, use PETG. It doesen’t warp while printing and is also heat resistant. Infill of 20% at 0.2mm or smaller would be ok.
It also doesen’t smell so bad.
regards,
Manuel
7 posts were split to a new topic: Dreamcatcher 3.03 Uninterruptible Power Supply (UPS)
Good evening everyone!

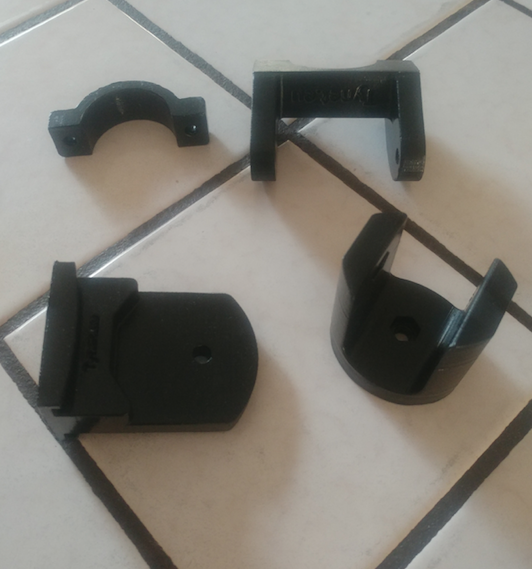

I made some changes to the model as suggested.
- made the middle part (where the EL mounts) 10mm longer so the wing nut clears
- added two holes (4mm,head up to7mm) to the pole mount so you can screw it into a Wall
- changed the form of the EL so the LNB can be rotated (SKEW) even when the connector is off center
- added a new part: A optional stand that replaces the pole mount
Update: New STLs are now on Thingiverse

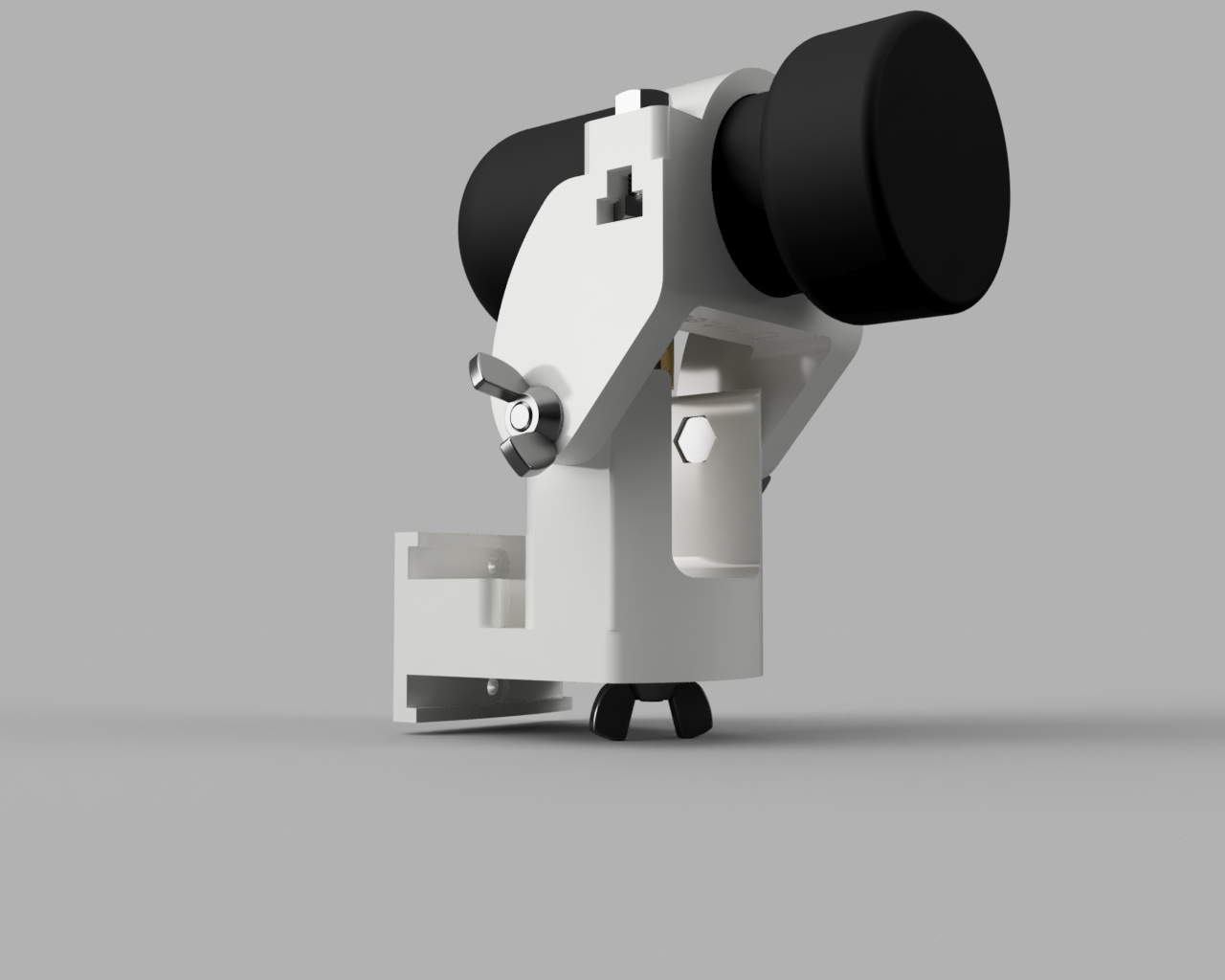

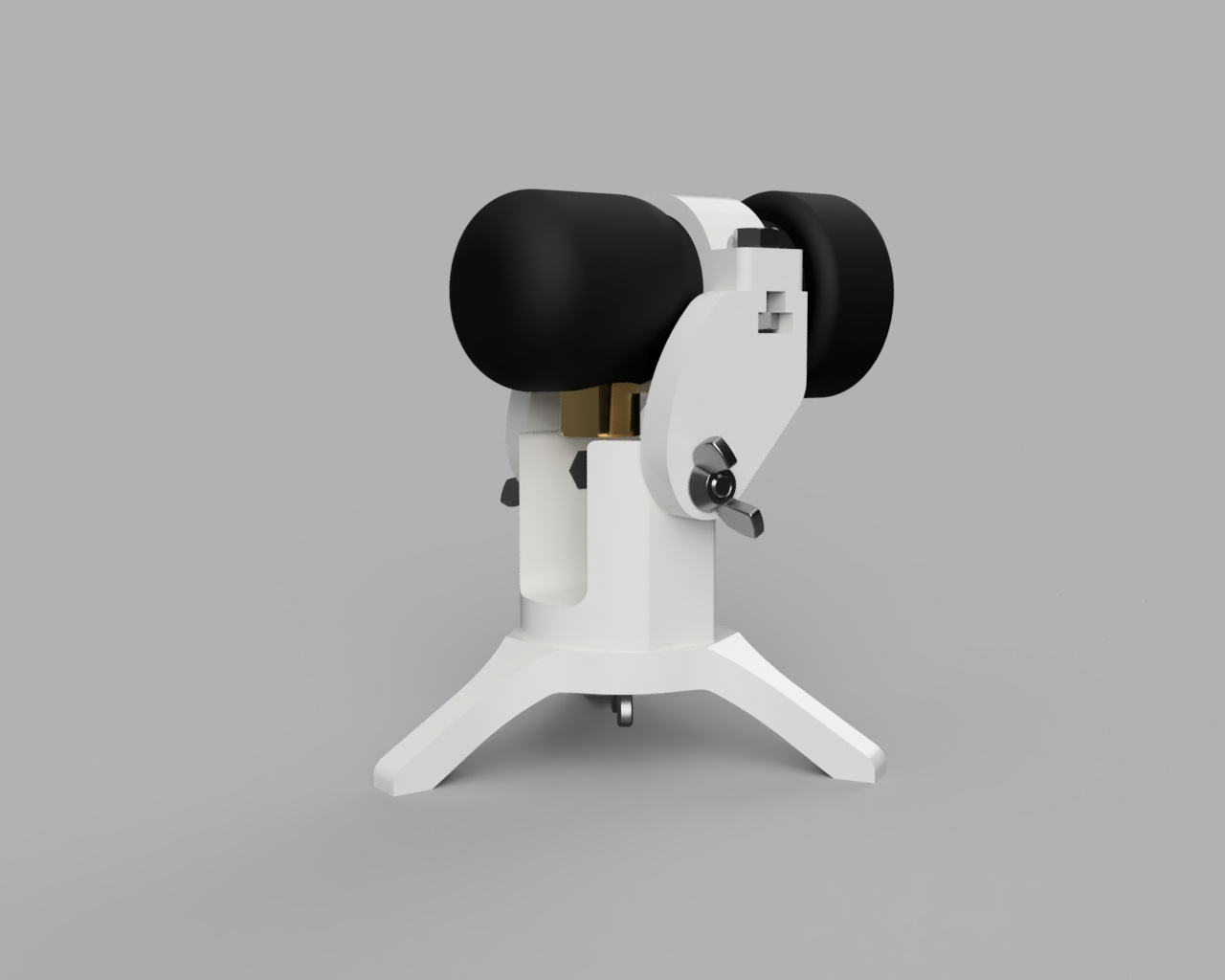

I will upload the STLs to Thingiverse shortly, here are two renders:
regards from Cologne,
Manuel - DO5TY
3 Likes
More on Globe Mounting

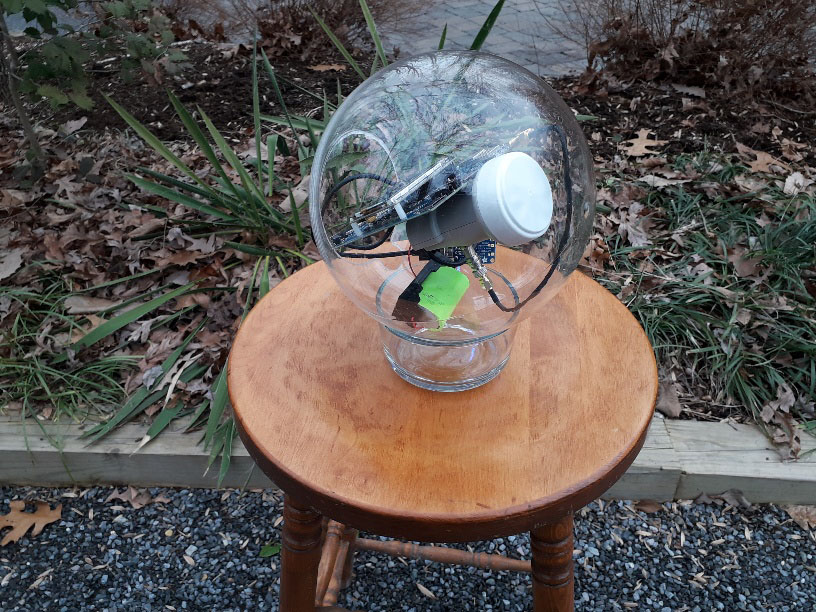

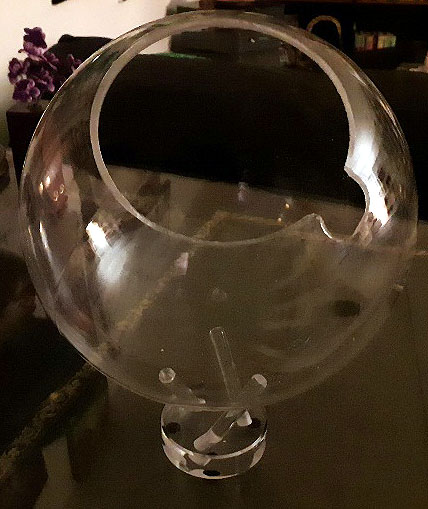

Using an 8 inch diameter clear plastic globe with a 4 inch entry hole (I had to make a cutout to get the Dreamcatcher board inside),
I was able to insert the Dreamcatcher, LNB, and Lipo to run Skylark 5.5.
I placed the globe on a small glass kitchen storage dish, and was quickly able to rotate the globe to get the correct azimuth, elevation, and skew. I can reach a finger inside the bottom to use the touch screen.
If you position the access hole on the bottom, then the globe becomes water resistant. If you used a white plastic globe, you could achieve stealth if you want to hide your gear. Ken
1 Like
Way back in the L band antenna days… I found that routing of the coax anywhere near the receiver chip on the printed circuit board caused a loss of signal.
The package you show is the closest mounting I have seen between the coax/lnbf/dreamcatcher. Have you noticed any bit-rate loss related to the proximity of the components in your setup ?
Not in this case - - % Valid packets are 99%, packet rate is about 10.3, and Bitrate is about 20000. It’s raining and snowing here, buy my SNR is -11,25 dB and Rssi is -76 dBm. Ken
